The totaldac d1-seven DAC has been created for the 7th anniversary of Totaldac. It was made to be the far best sounding one-box DAC in the totaldac range, using the same number of R2R ladders as the d1-six, but with advancements in the analog architecture, the EMC, the firmware and more. This DAC can also integrate the internal server/streamer option for a direct network use. And don’t forget, your d1 as every d1 DACs can be upgraded to a d1-seven!

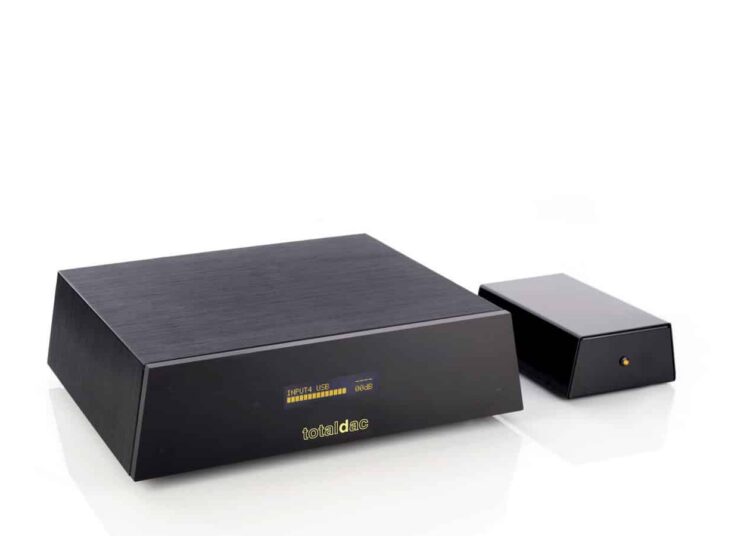

totaldac-d1-seven-dac-celebtrates-7th-anniversary-2

Features

  • 192KHz asynchronous Xmos USB, optical, RCA and AES-EBU digital inputs, selected from a remote control
  • 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz and 192KHz, 16 to 24 bit formats supported
  • as an option, DSD (DoP standard) supported on all inputs
  • embedded custom clock with anti-jitter FIFO memory
  • 3.2Vrms max RCA, 6.4Vrms max XLR analog output. The d1-seven has no headphone output by default
  • volume control, adjusted by a remote control and an OLED display, works for all inputs, not only USB
  • phase polarity selected by remote control
  • non-oversampling DAC compensation filter activated or disactivated by remote control
  • display switched off by remote control or automatic
  • R2R DAC technology using 300 pieces of 0.01% VAR Bulk Metal® Foil resistors Vishay Foil Resistors
  • class A discrete transistor output stage
  • external power supply to minimize the noise on the embedded preamp
  • aluminium and PMMA enclosure with massive pure copper antivibration plate
  • power consumption 20W (24W with the server option)
  • DAC dimensions: height 110mm, width 360mm, depth 290mm
  • power supply dimensions: height 65mm, width 122mm, depth 180mm
  • weight: 7kg

Available options

  • server/streamer option. The software is the same as the d1-server, RoonReady certified
  • DSD (DoP) option
  • silver massive aluminium front panel
  • 115V power option
  • BNC coaxial digital input instead of RCA
  • 2, 3, 4 way active crossover or more, by associating several DAC boxes
  • bass boost
  • dedicated power supply for server board

totaldac-d1-seven-dac-celebtrates-7th-anniversary-3

Visit the totaldac website.
